• Dual Voltage Connections increase flexibility by enabling the installer to select the required voltage within phase, to meet job-site requirements.
• Single-Phase: 115V and 230V, 3-Phase: 208V, 230V and 460V, 575V is a discrete model without field-selectable voltage.
• Control Function Selector Dial enables easy selection and programming of (7) wiring types, from constant pressure to close, to specialized Timer-to-Close functionality to meet end-user needs.

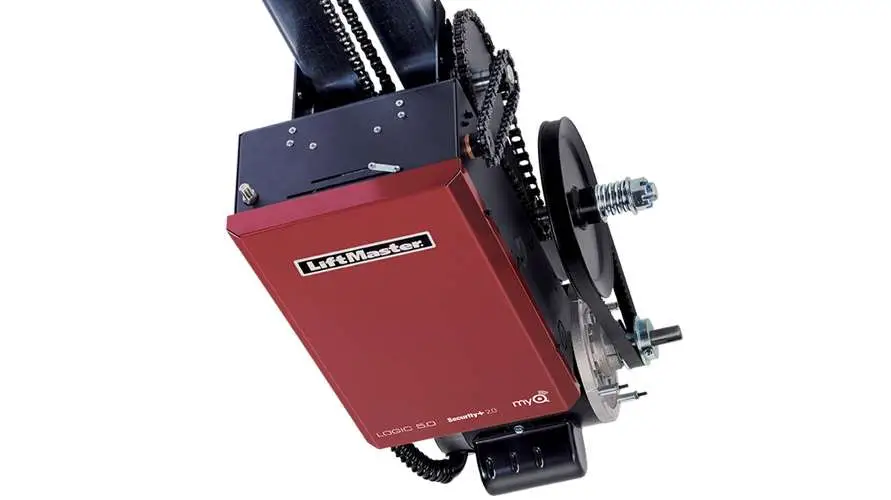

• Continuous-Duty High-Starting Torque Motor performs in demanding industrial overhead door applications.
• Motor Removable without Affecting Limit Switch Settings saves time and money for maintenance.
• Adjustable Friction Clutch helps to protect door and operator from damage should the door meet an obstruction.
• Mid-Stop enables partial opening of door to a preprogrammed position for energy savings, time savings and convenience.
• Maximum Run Timer reverses or stops door if closing time exceeds expected time-frame to limit damage to door and operator.
• Delay-On-Reverse Circuit prevents abrupt reversal of door, reducing wear on the door and operator system.
• 3-Button Control Station with Maintenance Alert System (MAS) provides open/close/stop functions and notification when routine maintenance is required.
• Continuous-duty high-starting torque motor with instant reverse and overload protection. Available in 1/3, 1/2, 3/4 and 1 HP; single- or three-phase. Capacitor start on single-phase. Removable without affecting limit switch settings.
• Operators are factory preset to C2 wiring, providing momentary contact to open and stop, with constant contact to close.
• 5V DC NEC Class 2.
• First-stage heavy-duty 5L V-belt; second #41 chain; #48 (for 1/3 and 1/2HP) and #41 (for 3/4 and 1HP) output chain on trolley.
• Industrial ball bearings on output shaft, heavy-duty oil-filled bushings on reduction shafts.
• Brake Standard on 3/4 and 1 HP operators, (optional on 1/2 HP, not available on 1/3 HP).
• NEMA 1 type electrical box, heavy-duty 11-gauge steel frame with durable powder coat finish, all reduction sprockets drilled and pinned to shafts.
• #48 on 1/3 and 1/2 HP. #41 on 3/4 and 1HP.
• Two-year warranty.

• UL 325 requires all commercial door operators to be either constant pressure to close or be equipped with a primary external monitored entrapment protection device.
• Security+ 2.0^™ safeguards your facility – with every click, a new code is sent to the commercial door operator so the door opens only for you.
• Timer-To-Close conveniently and confidently closes the commercial door automatically after a predetermined amount of time has elapsed for added security and peace of mind.
• Emergency Disconnect disconnects the operator from the door for manual lifting in an emergency.

Business Safety and Security

• Safety Standards: Meets UL 325 Safety Standards.
• Commercial Safety Sensors: Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.
• Timer to Close: Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the full open position.
• Security+ 2.0^®: Safeguard facility access with Security + 2.0 technology, opening for registered devices only.

• Multiple Power Options: Available in 1/3, 1/2, 3/4, and 1 HP
• Dual Voltage Connections:
  • Single-phase: 115V and 230V
  • 3-phase: 208V, 230V and 460V
  • Discrete model: 575V
• Customizable Voltage: To meet job requirements

• 02-103L 3-Button Indoor Surface Mount Station (NEMA 1)
• CPS-U Commercial Photo Eyes
